K&N Mass Air Flow Testing Findings

When K&N obtains a MAF sensor in question, our laboratory technicians:

Microscope Lab Testing K&N Lab Testing
  • - Inspect it under a microscope to screen for contamination that may be present.
  • - Electrically test for MAF sensor failure by confirming output calibration readings.
  • - Perform chemical analysis of sensors to determine the source of the contamination where any is present.
  • - Audit chemical analysis through work with an independent laboratory.
  • - Interact directly with the dealership involved to supplement with additional facts.

Below are some of the relevant findings:

1. K&N's laboratory technicians tested an over-oiled K&N air filter at a rate of 1,000 Cubic Feet per Minute (CFM) on our Filtration Test Stand which utilizes an absolute filter. An absolute filter is one specified by ISO 5011 (SAE testing protocol) which is used to capture test dust that passes through a filter during efficiency testing. In this case, an absolute filter was used to capture any filter oil leaving the filter and to allow us to measure any oil migration from the filter. We weighed the absolute filter before and after the test and confirmed that oil does not migrate from a K&N air filter – even at CFMs far in excess of those seen in production engines.

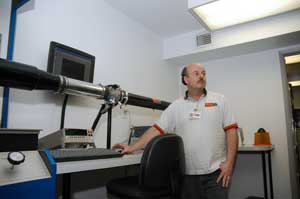

K&N Air Filter Testing

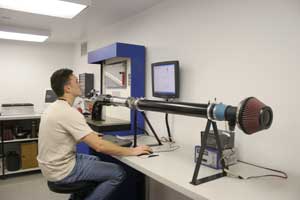

K&N Air Flow Testing

2. We coated both hot wire and film style sensors with K&N filter oil in both controlled (laboratory) and uncontrolled (real world) environments - none triggered check engine lights. We created extreme conditions, beyond anything an engine would ever experience such as submersing a MAF sensor in filter oil and monitored the sensor readings while spraying it with test dust. Even under these circumstances, the MAF sensor was not damaged. In addition, we were able to take this same MAF sensor, clean it, and found that the readings were identical to the ones taken prior to the extreme testing.

3. A majority of the "failed" sensors we retrieved from dealerships had not failed at all. They tested to be functioning within normal operating parameters as calibrated against new sensors purchased through dealership parts and service departments.

4. Few, if any, automotive dealership service centers have the testing equipment to authenticate a mass airflow sensor failure.

5. Many of the sensors tested were self-contaminated by the silicone potting compound used in the manufacture of the MAF. Some manufacturers have issued TSB's (Technical Service Bulletins) advising dealerships of the occurrence of MAF's contaminating themselves with their own silicone potting compound.

6. Sensors fail and are even the subject of full recalls by vehicle manufacturers. For information on recalls visit: www.recalls.gov.

For a list of our MAF sensor testing results along with the dealerships involved go to our MAF Sensor Test Results page.

More Information:
An In-Depth Look at How Mass Air Flow Sensors Work
